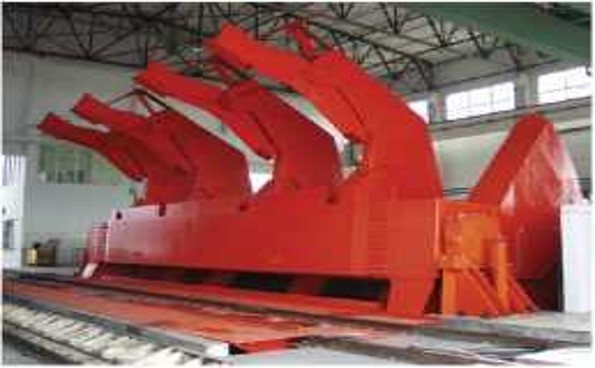

Speed Adjustable Electrical Wagon Unloading System

Brand Name : SSI-WH

Model Number : SSI-1

Certification : manufacture certificate

Place of Origin : china

MOQ : 1

Price : US $1,500,000-5,000,000/ Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 sets / year

Delivery Time : 6 months after receipt of advance payment

Packaging Details : Wooden case or bare

material : high quality steel

color : red

paint : Jotun

item : wagon unloading system

character : durable

steel structure : welding

benefit : low cost

price : cost effective

Contact Now

speed adjustable electrical wagon unloading system

The wagon unloading system is of turn-back type and through type. The empty train line is used for the turnback dumper system. After the empty rail car is unloaded, the empty wagon is moved to the empty rail car line through the transverse shifter, and then pushed out from the transverse shifter to the empty car line and collected by the empty car pusher. The system includes a car dumper, side arm charger, traverser, empty car propeller, wheel gripper, etc. There is no empty car line in the through layout, and the empty car is pushed to the other side of the car dumper by the side arm charger for collection after unloading. The layout type is determined by the land occupation and general layout of the site


parameters of train bumper number
Number of vehicles overturning at the same time type tipping Type Tipping capacity applicable Applicable models Model size(mm) Tipping weight (T) Rotation angle (°) Slewing speed starting Starting and braking time rotation Rotation time
(knots / hour) long wide high rated max normal max r/min s s
1 C Turn back 20-24 C50～C60 11938～14038 3140～3243 2790～3594 100 110 160 175 1 8 65-75
2 O penetration 58-74 C60 It can be adjusted according to the actual model 2x84 2x110 160 170 2.8 8 35-45
C Turn back 32-36 C60 220 240 165 175 1.2 8 50-70
3 O penetration 90 C80～C100 300 372 165 180 1.885 6 40-60
C Turn back 42 C61～C96 300 372 175 175 1.09 8 50-75
4 O penetration 112 C80 400 ellipsis 165 ellipsis 1.885 3 35-45
